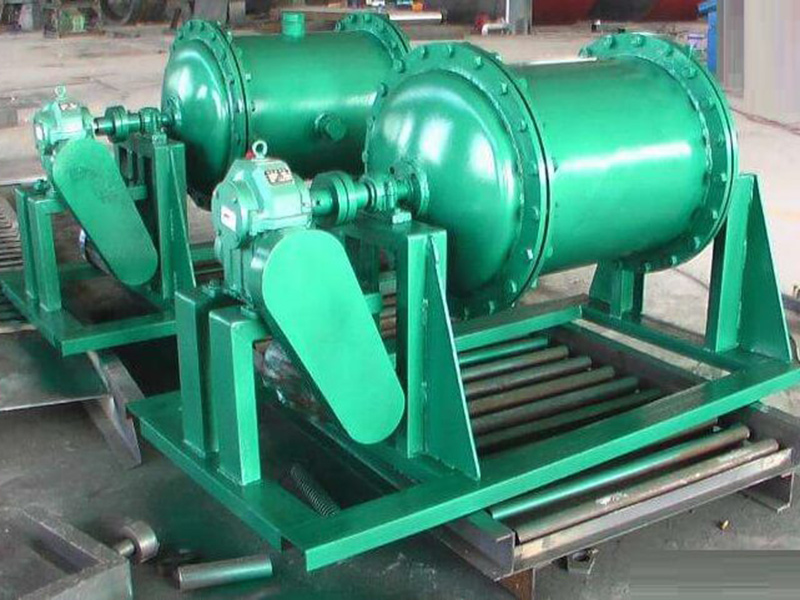

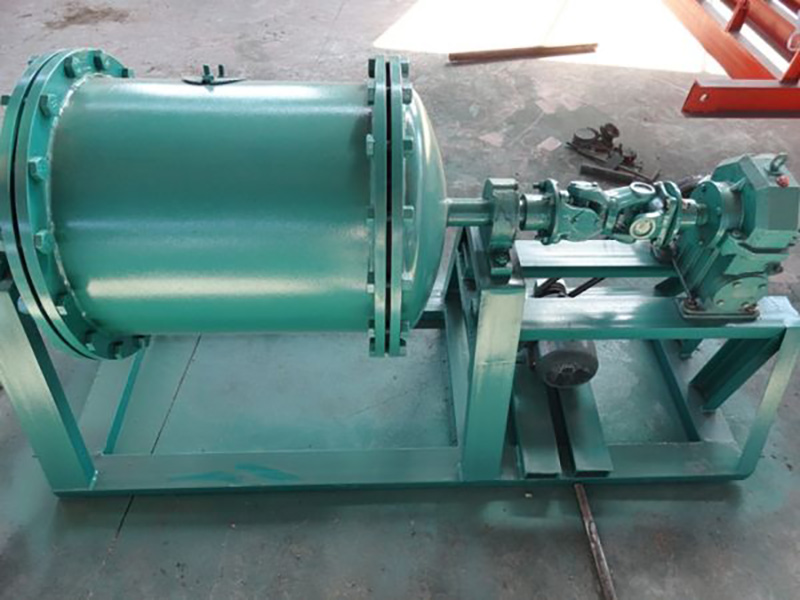

Small Ball Mill Gold Mercury Amalgamator Barrel

Short Description:

Gold amalgam barrel, also called small mercury ball mill, is the traditional gold refining machine; it’s been widely used to mix the mercury and gold concentrate from shaking table, sluice box or gold concentrator, in order to get the pure gold from black sand.

Our automatic amalgamator is newly designed, use motor to drive the machine, instead of manual. use the stepper motor for easier operation;


Product Detail

Product Tags

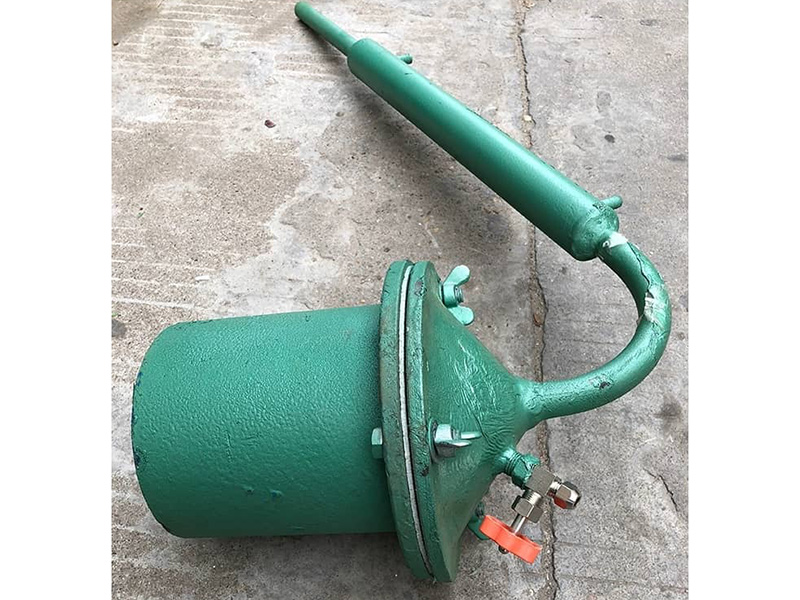

This machine is used for mixing the mercury and gold with black sand, get the gold amalgam. Then distill the gold amalgam in the mercury retort and get the pure gold.

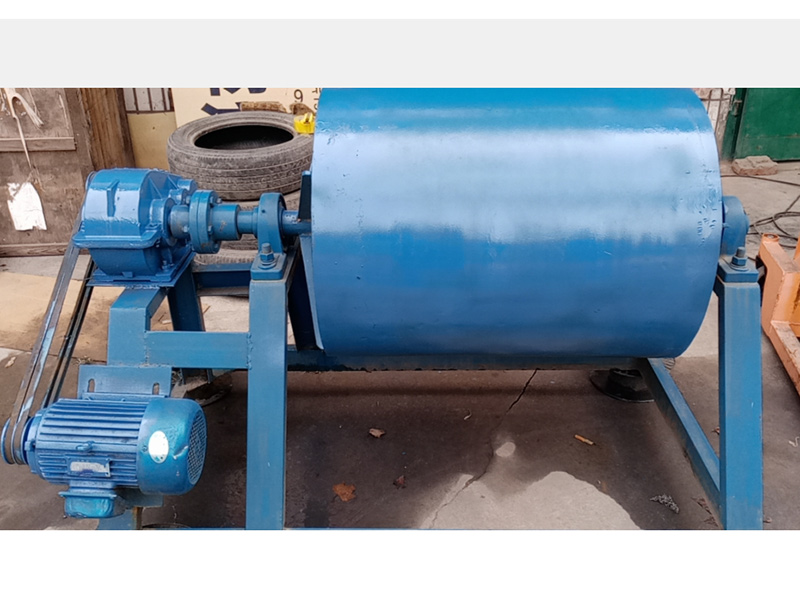

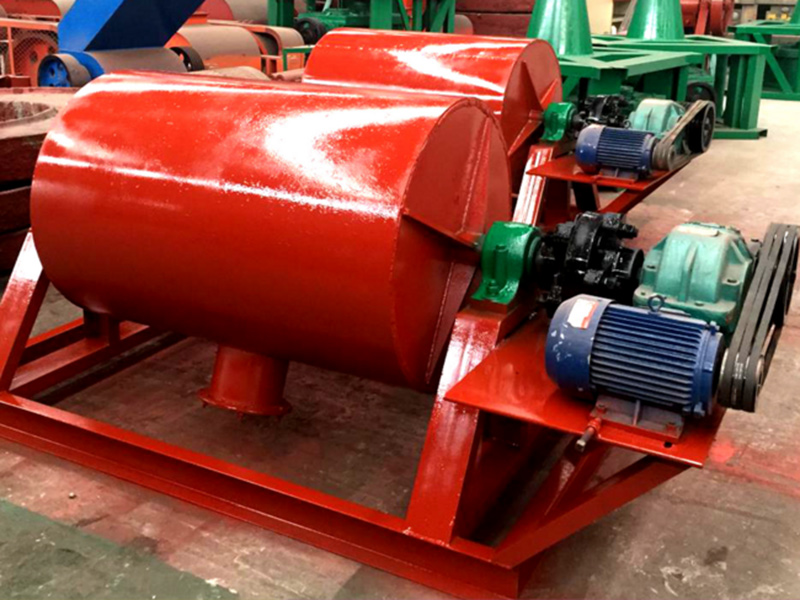

Some gold miner also use ball mill to have the amalgamation process, but the Since amalgamation in ball mill recovery rate is low, the loss of mercury, larger issues such as health hazards to the environment and workers now have less use, only some of the backward areas also to use Nianpan machine or a ball mill directly amalgamator.


Working Principle

Although most of the gold in the re-elected gold concentrate is in a free state, the surface of the gold particles is often contaminated to varying degrees, and some gold and other minerals or gangues are in a living form. When re-selecting gold concentrate with a mercury-mixing cylinder, steel balls are often added to the cylinder, and the surface film of the gold particles is removed by grinding and the gold particles are dissociated from the continuum to treat the weight of the free gold particles with clean surface. In the case of sand concentrates, light-weight amalgamation cylinders are generally used, and the amount of hitting balls is small. When heavy sand concentrates with high content of continuous granules and serious surface contamination of gold particles are used, heavy-duty amalgamation cylinders are often used.


Specification

Type

Inner Size

OreLoading (kg)

Speed (r/min)

Power (kw)

Ball Weight (kg)

Ball Dia (mm)

Dia

Length (mm)

Volumn (m3)



Light Type

420

600

about 0.3

50-90

20-22

0.75-1.5

10-20

38-50

Heavy Type

0-31

600

800

0.233

100-150

22-38

0.3-2.1

150-300

38-50

0-3b

750

900

0.395

200-300

21-36

1.7-3.75

300-600

38-50

800

1200

0.60

300-450

20-33

3-6

500-1000

38-50
