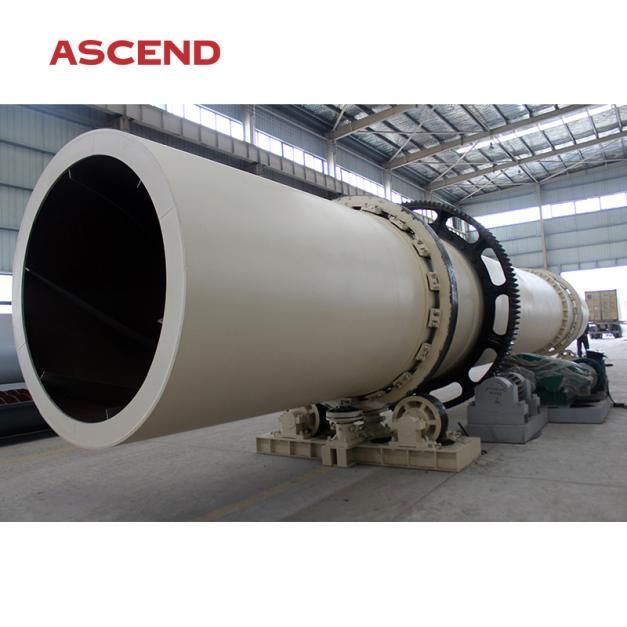

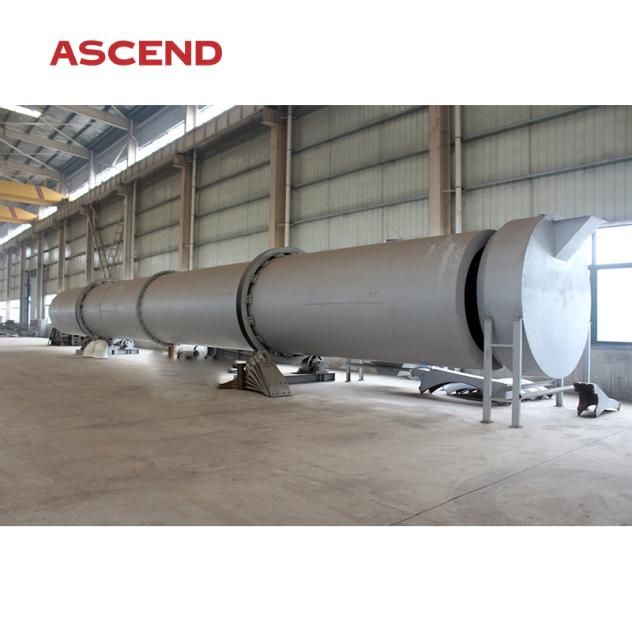

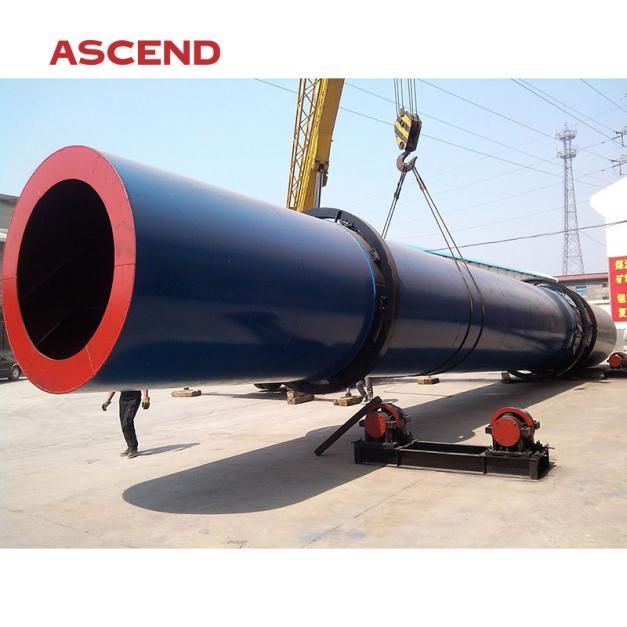

Rotary Dryer and rotary drum dryer machine
Product Details
1.The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2.According to the characteristics of different fertilizers, we have arranged the second granulation zone reasonably so as to improve the granulation effect.
3.Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption.
4.Temperature induction monitor, uniform vibration and air proof setting, which improve performance and productivity efficiently.
5.The assorted combustion furnace is a type of energy-efficient and has the characteristics of smaller area, easy regulation and equipped with greenhouse.
Ascend Rotary Dryer Advantages
1.Simple design, self-insulation.
2.High heat efficiency can reach 70-80%.
3.Large operation elasticity and wide application.
4.Short drying period is normally 10 to 300 seconds.
5.The fuel can be coal, oil, natural gas etc, dry mass, granule and powder material.

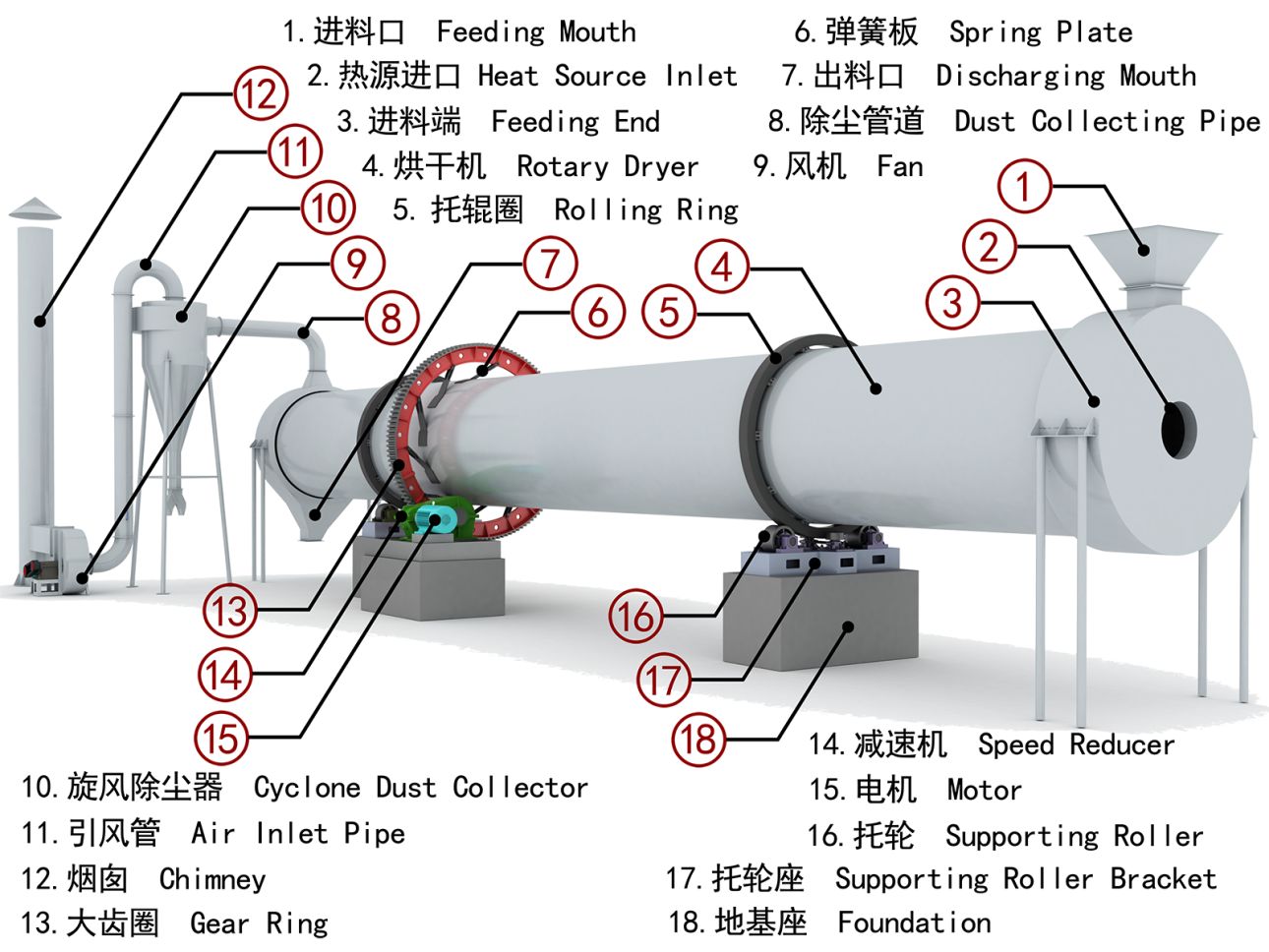

Rotary Dryer Working Principle
The working principle of the rotary dryer is that the heated air or gas is in direct contact with the wet material, and the water is evaporated or removed from the material. Heated air or gas is introduced into the dryer through a burner or heat source, and it flows through the rotating drum, bringing heat and taking away the moisture released by the material.
Rotary Dryer Specifications
| Type | Gradient(%) | Speed(r/min) | Inlet air temperature | Power(KW) | Production(t/h) | Weight(t) |
| 600*6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| 800*8000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2 | 3.5 |
| 800*10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| 1000*10000 | 3-5 | 3-8 | ≤ 700 | 5.5 | 1-3.5 | 5.6 |
| 1200*10000 | 3-5 | 3-8 | ≤ 700 | 7.5 | 1.8-5 | 14.5 |
| 1200*12000 | 3-5 | 3-8 | ≤ 700 | 11 | 2-6 | 15.8 |
| 1500*12000 | 3-5 | 2-6 | ≤ 700 | 15 | 3.5-9 | 17.8 |
| 1800*12000 | 3-5 | 2-6 | ≤ 700 | 18 | 5-12 | 25 |
| 2200*12000 | 3-5 | 2-6 | ≤ 700 | 18.5 | 6-15 | 33 |
| 2200*18000 | 3-5 | 2-6 | ≤ 700 | 22 | 10-18 | 53.8 |
| 2200*20000 | 3-5 | 2-6 | ≤ 700 | 30 | 12-20 | 56 |
| 2400*20000 | 3-5 | 2-6 | ≤ 700 | 37 | 18-30 | 60 |
| 3000*20000 | 3-5 | 2-6 | ≤ 700 | 55 | 25-35 | 78 |
| 3000*25000 | 3-5 | 2-6 | ≤ 700 | 75 | 32-40 | 104.9 |

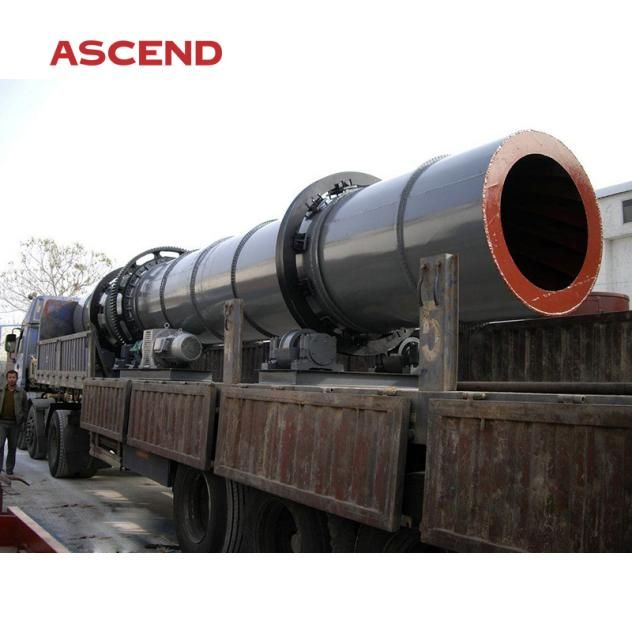

Ascend Rotary Dryer Delivery
After customer buys the equipment, if they need, we will send professional engineer to their site for installation, commissioning and staff training. We will offer 1 year long warranty time since the machine running. Customer satisfaction is our ultimate pursuit.

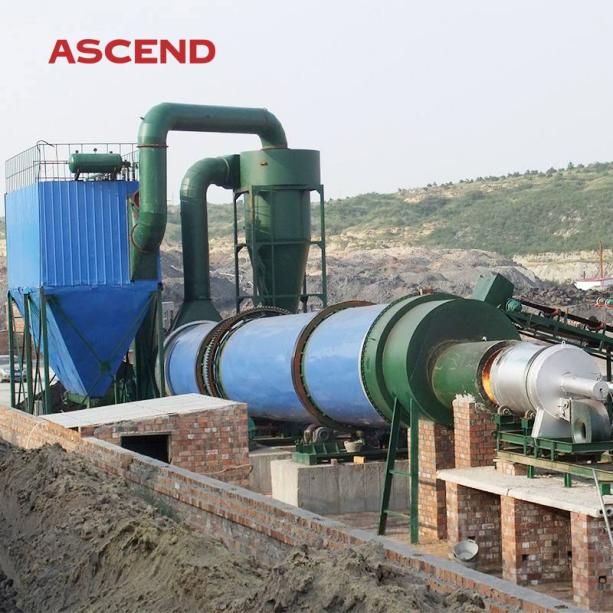

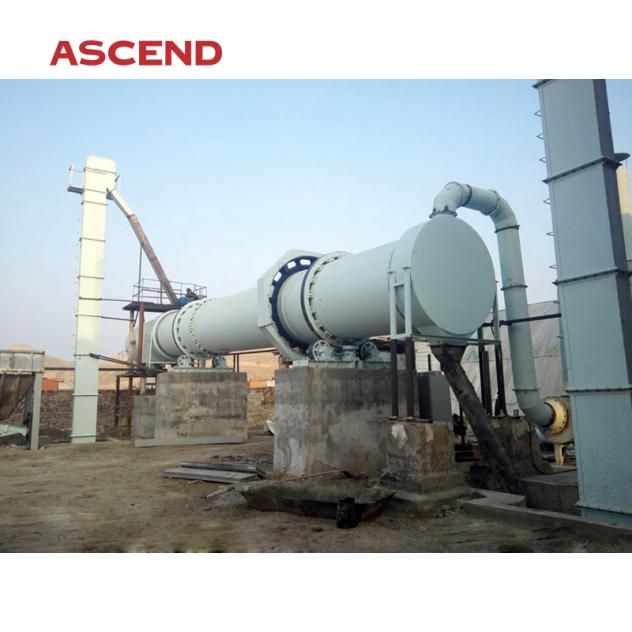

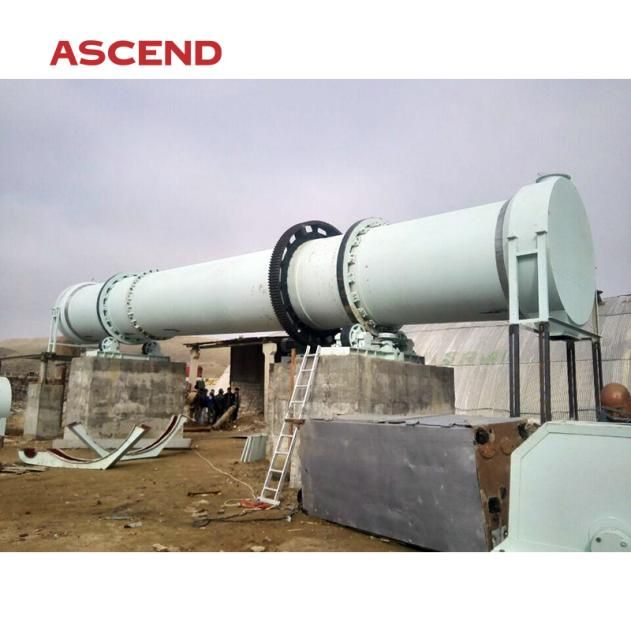

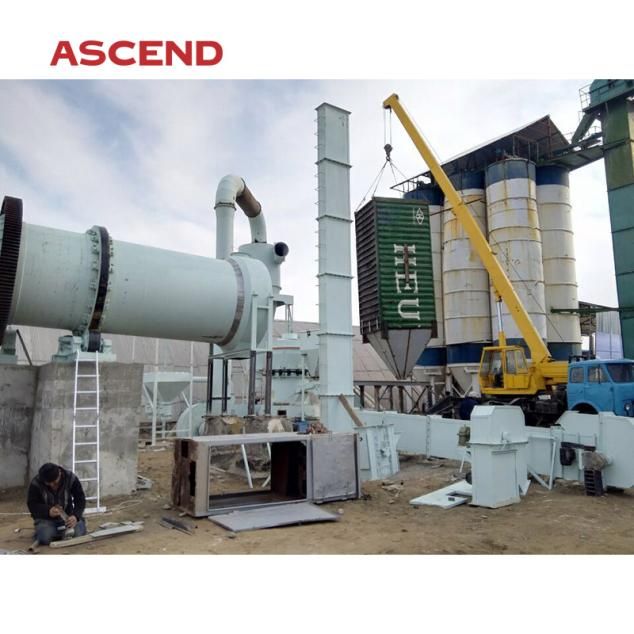

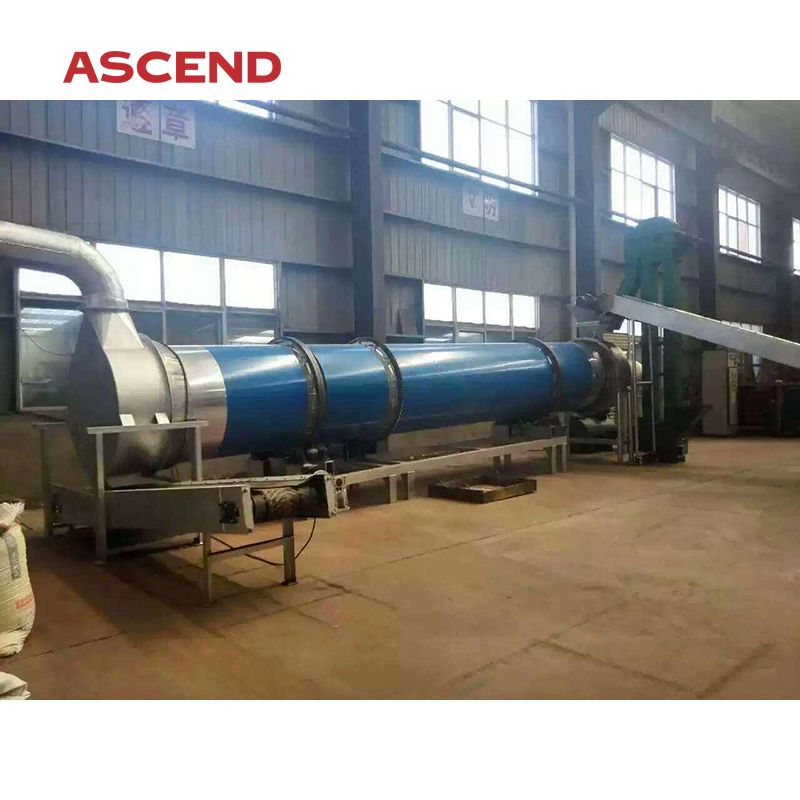

Ascend Rotary Dryer Working Sites
