Rock Stone Jaw Crusher Spare Parts Jaw Plate

Short Description:

Jaw crusher is a primary crushing machine in the crushing plant. The wearing parts of jaw crusher are mainly the movable jaw plate, fixed jaw plate, cheek plate and toggle plate.


Product Detail

Product Tags

The movable jaw plate and the fixed jaw plate of the jaw crusher are high-quality high manganese steel castings. In order to prolong their service life, their shapes are designed to be symmetrical from top to bottom. When one end is worn, it can be used in an adjustable direction. The movable toothed plate and fixed toothed plate are the main land for stone crushing. The movable toothed plate is installed on the movable jaw to protect the movable jaw.


Jaw Crusher Jaw Plate Advantages

Our Jaw plate is manufactured with High Manganese steel of Mn13Cr2, Mn14Cr2, Mn18Cr2, Mn22Cr2, ASTM A128 Gr A & B2 & B3, BS 3100 Gr BW10, SABS 407 Type 1 & 2 or other customized material.Through special heat-treatment process and With special chemical composition, our jaw plate has a service life 30% longer than those of traditional high manganese steel!

We can offer OEM according to customer request. If you can offer us the drawing the crusher spare parts, we can make casting strictly according to the drawing!

Jaw Crusher Machine Technical Specifications

Model

Max. Feeding size
(mm)

Discharge size
(mm)

Capacity
(t/h)

Motor power
(kw)

Weight
(t)

Dimension
(mm)

Pe150*250

125

10-40

1-3

5.5

0.7

1000*870*990

Pe250*400

210

20-60

5-20

15

2.8

1300*1090*1270

Pe400*600

340

40-100

16-60

30

7

1730*1730*1630

Pe400*900

340

40-100

40-110

55

7.5

1905*2030*1658

Pe500*750

425

50-100

40-110

55

12

1980*2080*1870

Pe600*900

500

65-160

50-180

75

17

2190*2206*2300

Pe750*1060

630

80-140

110-320

90

31

2660*2430*2800

Pe900*1200

750

95-165

220-450

160

52

3380*2870*3330

Pe1000*1200

850

195-265

315-500

160

55

3480*2876*3330

Pex150*750

120

18-48

8-25

15

3.8

1200*1530*1060

Pex250*750

210

15-60

13-35

30

6.5

1380*1750*1540

Pex250*1000

210

15-60

16-52

37

7

1560*1950*1390

Pex250*1200

210

15-60

20-61

45

9.7

2140*2096*1500

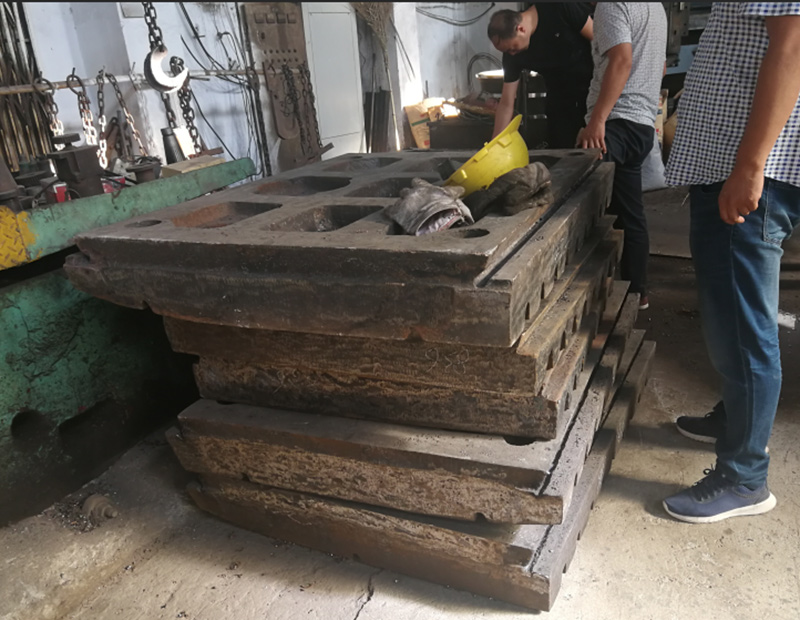

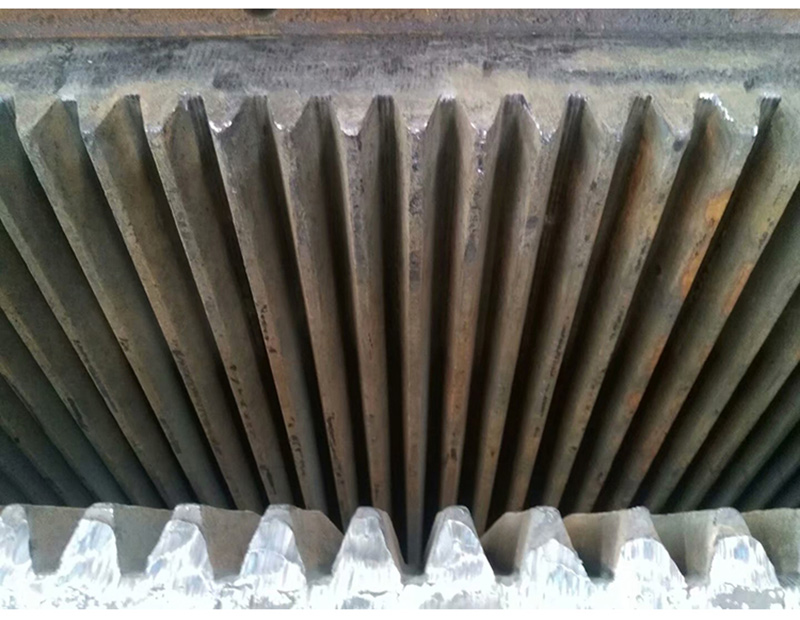

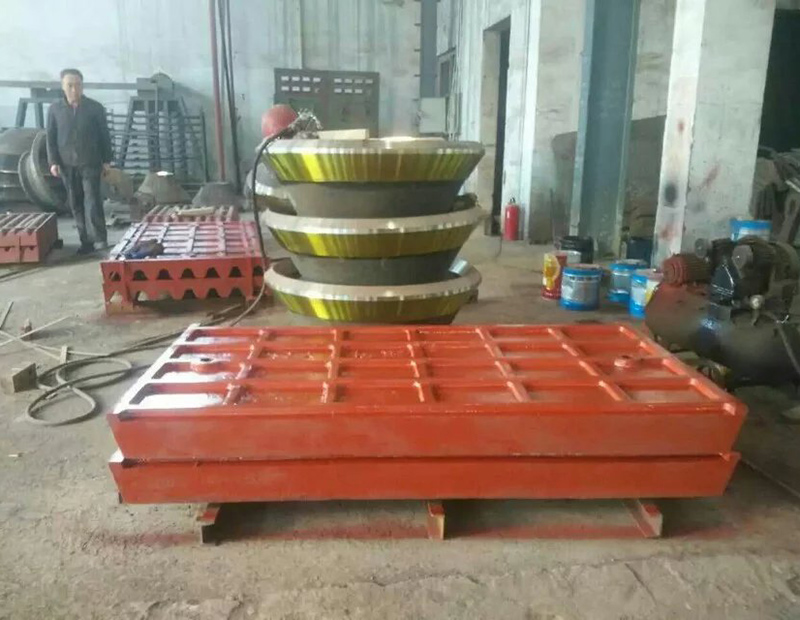

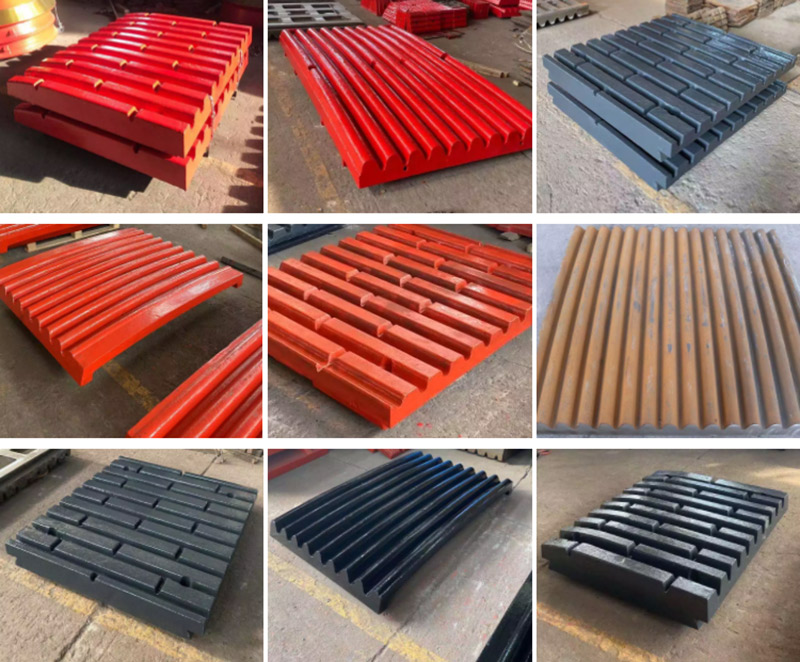

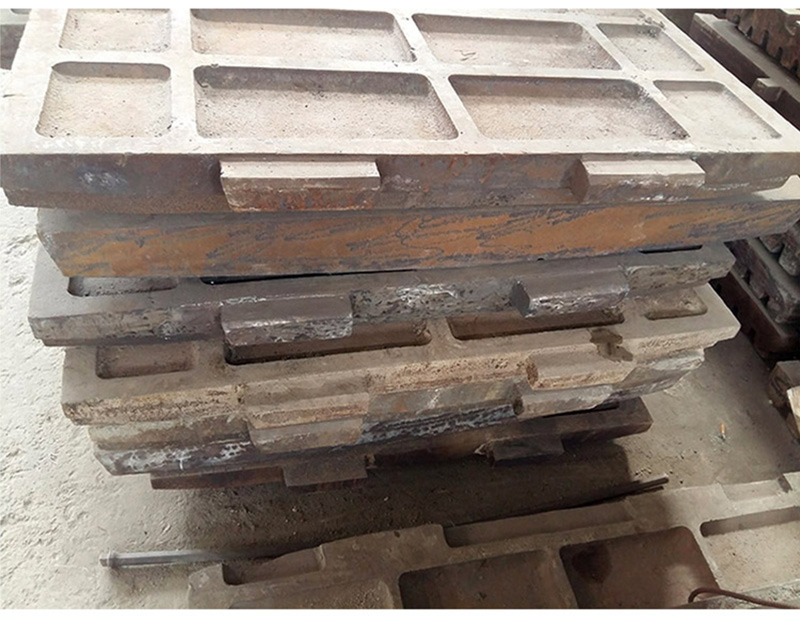

Jaw Crusher Plate Display
