Mining machinery crushing equipment “Jaw crusher” Machine

Jaw crusher is usually as a primary crusher in crushing line, It’s also be known as tiger’s mouth. Because the jaw crusher crushing cavity is composed of two jaw plates, when it working, the movable jaw and the static jaw, which simulate the movement of the two jaws of animals to complete the material crushing operation. It’s widely used in the crushing of various ores and bulk materials in mining, which has many advantages of high capacity, simple maintenance, easy operation and low production cost.

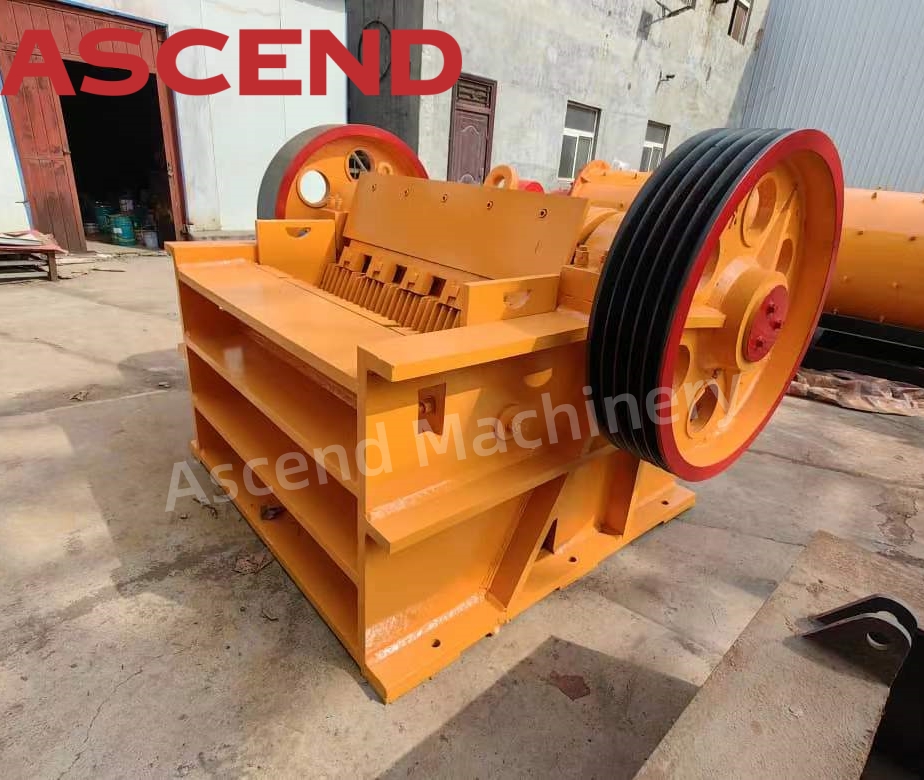

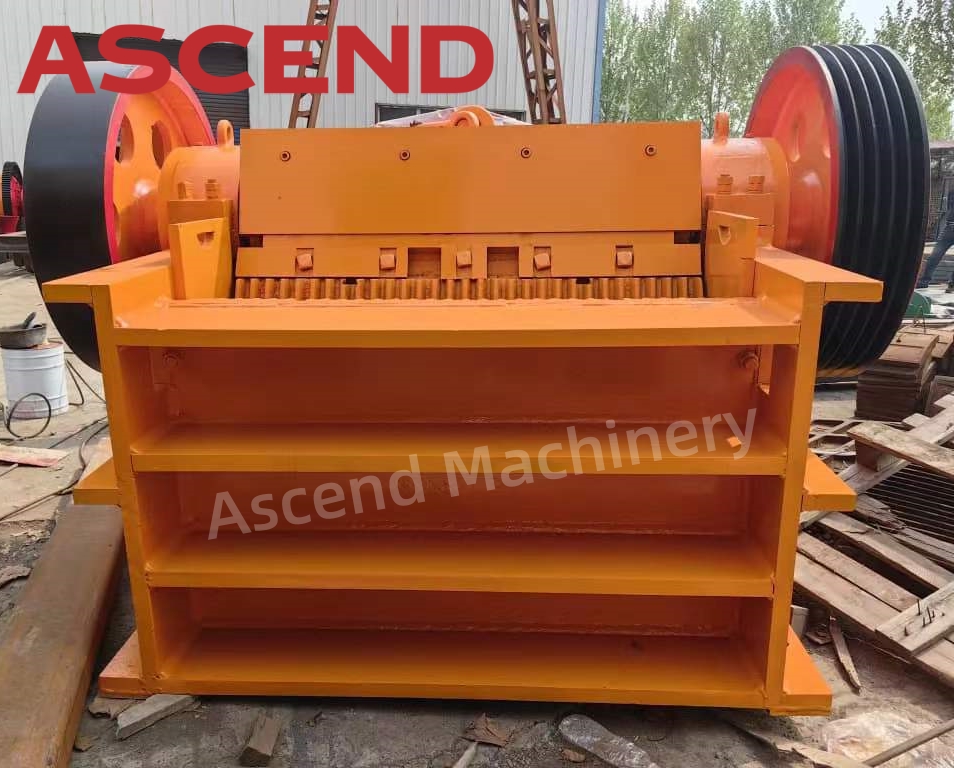

jaw crusher1.0      jaw crusher5.0

So how does it work?

when the jaw crusher begin working, the motor drivers the pulley and flywheel to move the eccentric shaft, so as to drive the moving jaw plateto move up, down, left and right. From the feeding mouth, the materials enter, they are crushed by the movable jaw plate and fixed jaw plate, and finally they are broken into output size what they need.

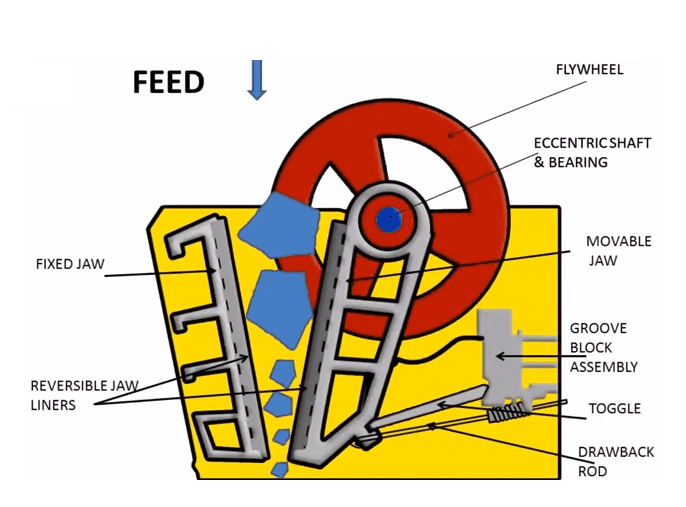

working principle          working pricinple1

Learning from the working principle, we know that the movable jaw plate and fixed jaw plate, pulley, flywheel and motor are both main parts, what’s more, the jaw plate is the key to crusher stone, most of the jaw plates are made of high manganese steel(ZGMn13). It’s tough and strong, so it can increase the life time.

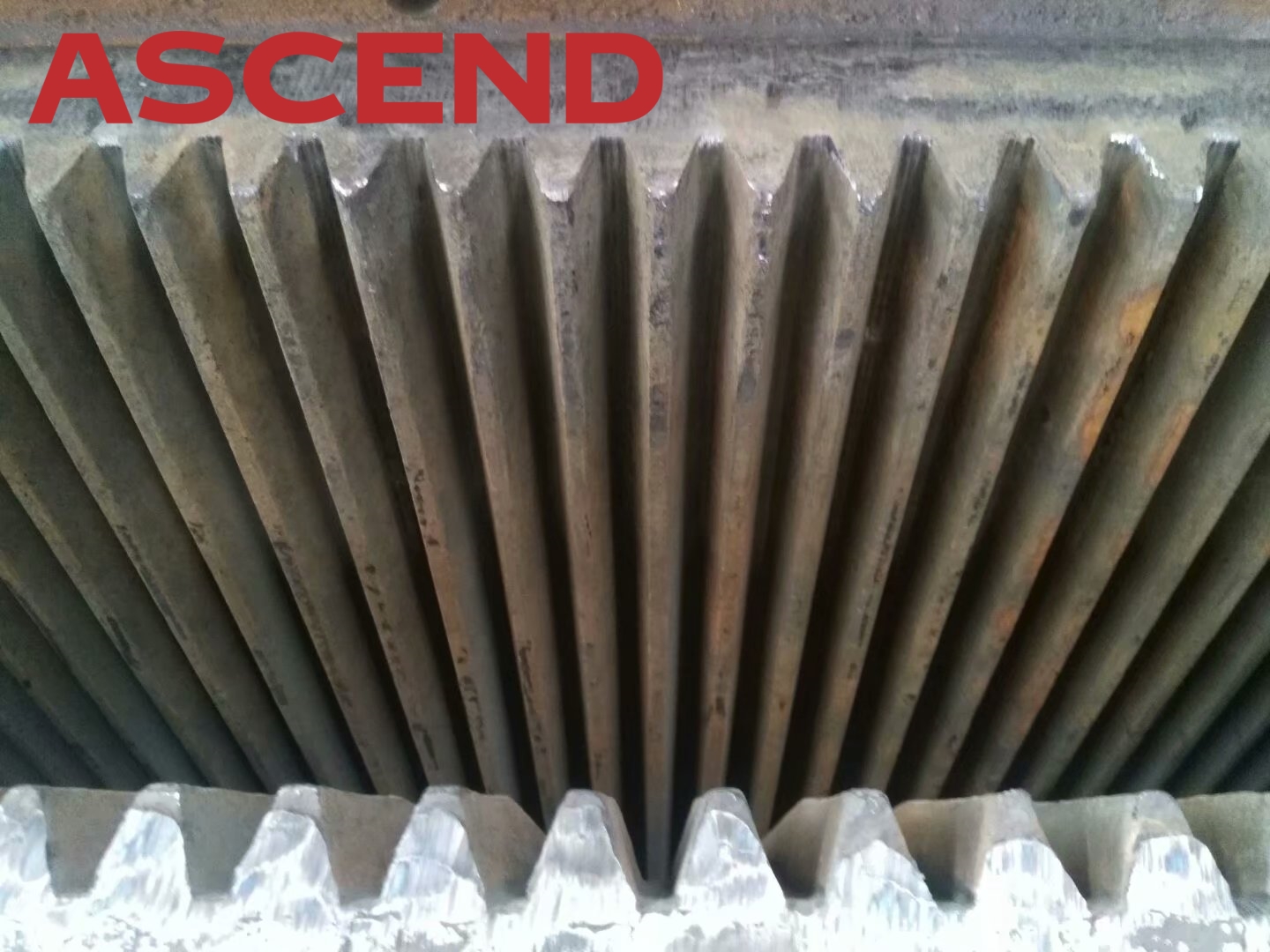

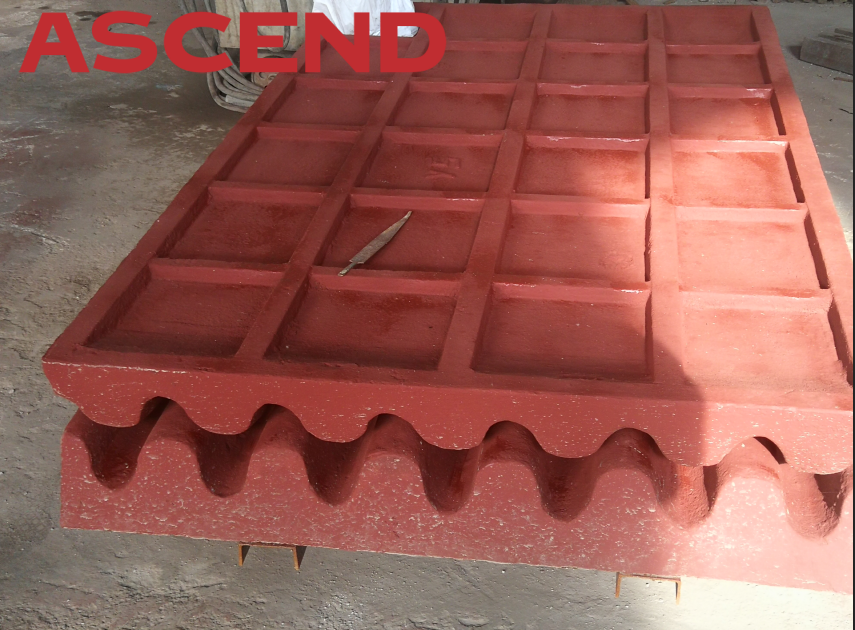

jaw plate1 (2)      jaw plate3

Our jaw crusher machines have many different models. Small model or Big model, we both have. PE150X250 PE250X400 PE400X600……are hot sale in Africa market. we can custom jaw crusher depend on your requirements.

In Summary, the jaw crusher is a important machine in crushing equipment, it will crusher limestone granite marble quartz gold ore mining materials from bigger size become small size. It’s the first step in crushing process. if you are interested in the jaw crusher, or working in mining quarry, please feel free to contact our sales manager, we will provide the most suitable solution for you.

Contact person: Mr. Wilson
Mobile: +86 18221130967 (WhatsApp & Wechat)
Email: wilson@ascendmining.com

Click here Check more information of our Jaw crusher


Post time: 23-05-24
