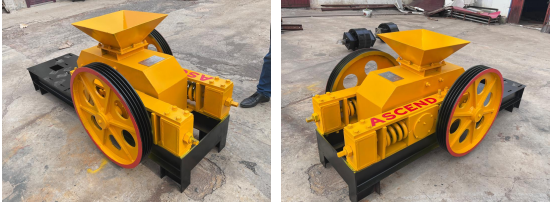

Ascend’s stone double roller crusher

With the rapid development of the sand and gravel industry, double roller crusher plays an increasingly important role in the field of hard stone crushing due to its unique performance advantages. Why do people often use it for sandstone processing production lines? Let’s learn about the double roller crusher.

Introduction
The double roller crusher is mainly composed of rollers, bearing seat, clamping and adjusting devices, and driving devices. It has 2 kinds, one is the smooth roller crusher, the other is the teeth-roller crusher. Smooth roller crushers are commonly used for breaking stones and making sand. Its feeding size is generally within 25mm, and its discharging particle size is between 1-8mm. The capacity per hour is about 5-200 tons.

Working principle
Two motors drive two roller to run at high speed, the material enters from the feeding mouth and collides with the two rollers. The two rollers move in opposite directions at the same time, so that the material is broken into the required discharging size. By adjusting the tightness of the screw at the spring, the distance between the two rollers can be adjusted to adjust the size of the discharging mouth.

Advantages
1.High efficiency: The double roller crusher is very efficient and can quickly crush large particle pieces of material into small particles, thereby improving production efficiency and capacity.
2.Simple operation: The operation of the roller crusher is very simple. We only need to adjust the speed and distance between the rollers to achieve different crushing effects. At the same time, its maintenance is also relatively easy and does not require too much time and effort.
3.Wide application: Double roller crusher is mainly used for crushing materials with compressive strength ≤160MPa, such as limestone, granite, iron ore, quartz, and so on. Therefore, it is widely used in different industrial fields.

As a mining machinery manufacturer, we have exported stone crushers equipment, grinding equipment, and mineral gold processing equipment to 130 countries and regions around the world. If you have any other questions or interests, please feel free to contact us.
