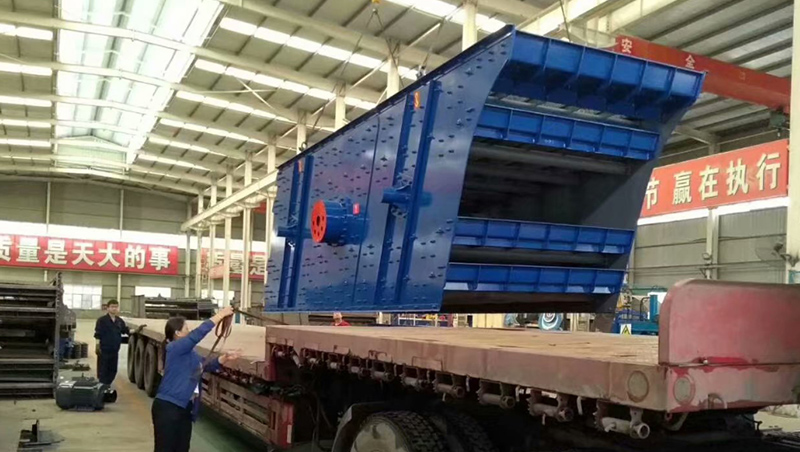

Gravel Aggregates Vibrating Screen Machine

Short Description:

vibrating screen is designed for the screening of stones in the quarry, and it can also be used for product grading in the departments of coal mine, mineral processing, building materials, electric power and chemical industry. YK series is a new type of machine in China. The machine adopts eccentric vibration exciter and tire coupling, which has the advantages of advanced structure, strong vibration force, small vibration noise, easy maintenance, firmness and durability.


Product Detail

Product Tags

The circular vibrating screen is a high-efficiency and new-type vibrating screen featured by circular vibration and multi-layers This type of vibrating screen is specially designed for screening material stone of a quarry, and widely used for product classification in mining, building materials, transportation, energy, chemical products industries. So, it’s a kind of ideal equipment used in the crushing and screening unit. If the screen with small boring diameter is installed, the wet and sticky material can not be screened unless the water spraying method is used.


Working Principle

The circular vibrating screen is mainly composed of screen box, vibration exciter, suspension (or support) device and motor, etc. The motor drives the main shaft of the exciter to rotate through the V-belt, and the screen box vibrates due to the centrifugal inertia force of the unbalanced weight on the exciter. Different amplitudes can be obtained by changing the eccentric axis of the exciter.

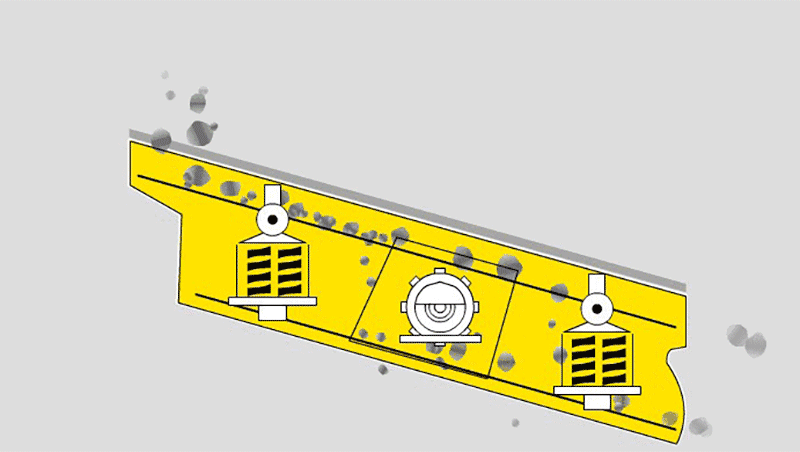

gravel1

Product Advantages

1.Adopt block eccentric as exciting force, and it is very high.

2. Adopt high strength bolts between beam and screening box, simple structure and easy maintenance.

3. Adopt tire coupler and it is connected flexibility and the operation is stable.

4. Adopt small amplitude, high frequency, and also big inclination, which makes that the machine has high efficiency, big capacity, long lifetime, low power and noise.


Specification

Model

Screen
layer

Screen
area
(m2)

Mesh
size
(mm)

Feeding
size
(mm)

Capacity
(m3/h)

Vibrating
frequency
(r/min)

Double
amplitude
(mm)

Power
(kw)

Dimension
(L×W×H)

Weight
(without motor)
(t)

Screen
slope
(°)

Screen
specification
(mm)

  YK1237 1 4.4 2-50 200 25-160 970 8 11 3857×2386×2419 4.8 15-20 1200×3700
2YK1237 2 4.4 2-50 200 25-160 970 8 11 3857×2386×2419 4.9 15-20 1200×3700
3YK1237 3 4.4 2-50 400 30-180 970 8 11 4057×2386×2920 5.2 15-20 1200×3700
4YK1237 4 4.4 2-50 400 30-180 970 8 11 4257×2386×2920 5.3 15-20 1200×3700
  YK1548 1 7.2 2-50 200 45-250 970 8 15 4904×2713×2854 5.9 15-20 1500×4800
2YK1548 2 7.2 2-50 200 45-250 970 8 15 4904×2713×2854 6.3 15-20 1500×4800
3YK1548 3 7.2 2-50 400 45-280 9708 8 15 5104×2713×3106 6.5 15-20 1500×4800
4YK1548 4 7.2 2-50 400 45-280 970 8 18.5 5304×2713×3356 6.6 15-20 1500×4800
  YK1848 1 8.6 2-50 200 55-330 970 8 15 4904×3041×2854 6.2 15-20 1800×4800
2YK1848 2 8.6 2-50 200 55-330 970 8 15 4904×3041×2854 6.9 15-20 1800×4800
3YK1848 3 8.6 2-50 400 55-350 970 8 22 5104×3041×3106 7.2 15-20 1800×4800
4YK1848 4 8.6 2-50 400 55-350 970 8 22 5304×3041×3356 7.5 15-20 1800×4800
  YK1860 1 10.8 2-50 200 65-350 970 8 22 6166×3041×2854 6.4 15-20 1800×6000
2YK1860 2 10.8 2-50 200 65-350 970 8 22 6166×3041×2854 7.1 15-20 1800×6000
3YK1860 3 10.8 2-50 400 65-380 970 8 22 6366×3041×3106 7.4 15-20 1800×6000
4YK1860 4 10.8 2-50 400 65-380 970 8 30 6566×3041×3356 7.7 15-20 1800×6000
  YK2160 1 12.6 2-50 200 80-720 970 8 30 6166×3444×2854 9.9 15-20 2100×6000
2YK2160 2 12.6 2-50 200 80-720 970 8 30 6366×3444×3106 11.2 15-20 2100×6000
3YK2160 3 12.6 2-50 400 90-750 970 8 37 6566×3444×3356 12.4 15-20 2100×6000
4YK2160 4 12.6 2-50 4050 90-750 970 8 45 6566×3444×3356 15.1 15-20 2100×6000
  YK2460 1 14.4 2-50 200 150-810 970 8 30 6166×3916×3839 12.2 15-20 2400×6000
2YK2460 2 14.4 2-50 200 150-810 970 8 30 6166×3916×3839 13.5 15-20 2400×6000
3YK2460 3 14.4 2-50 400 180-900 970 8 37 6366×3916×4139 13.6 15-20 2400×6000
4YK2460 4 14.4 2-50 400 180-900 970 8 45 6566×3916×4439 14.4 15-20 2400×6000
