Fixed Competitive Price Vibrating Screen Machine - Sand Soil Gold Ore Rotary Trommel Screen Machine – Ascend Detail:
When material feed into the drum, under the influence of large centrifugal force, material will make a spiral movement along with drum surface. Meanwhile, oversize materials was removed out of discharge outlet; qualified materials(different sizes) be collected in undersize hoppers. Then sent to be the next system by belt conveyor or other.
We can customize the trommel screen according to customer requirements.
The four type of trommel drum screen we can make include: 1. enclosed type. 2. Open type, 3.heavy type. 4. light duty type. The mesh sizes can be tailored according to the raw material sizes.
Drum Screen Advantages
1. Good performance, highest production rates, lowest input costs and long service life.
2. Capacity range of 7.5-1500 m3/hour of slurry, or 6-600 tons/hour of solids, per single trommel.
3. Special design of screen makes it more durable than a common one.
4. Heavy duty jacking and adjustable stands, assist in rapid set up & assembly time.
5. High pressure spray bar network around the hopper and through out the length of the trommel.
6. Heavy duty roller supports (steel or rubber) wheels.
7. Portable mobile or stationary configuration.
Rotary Trommel Drum Screen Specifications
| Model | Capacity (t/h) | Motor (kw) | Drum size (mm) | Feed Size (mm) | Overall size (mm) | Weight (KG) |
| GTS-1015 | 5-20 | 3 | 1000×1500 | less than 200 mm | 2600×1400×1700 | 2200 |
| GTS-1020 | 10-30 | 4 | 1000×2000 | less than 200 mm | 3400×1400×2200 | 2800 |
| GTS-1225 | 20-80 | 5.5 | 1200×2500 | less than 200 mm | 4200×1500×2680 | 4200 |
| GTS-1530 | 30-100 | 7.5 | 1500×3000 | less than 200 mm | 4500×1900×2820 | 5100 |
| GTS-1545 | 50-120 | 11 | 1500×4500 | less than 200 mm | 6000×1900×3080 | 6000 |
| GTS-1848 | 80-150 | 15 | 1800×4800 | less than 200 mm | 6500×2350×4000 | 7500 |
| GTS-2055 | 120-250 | 22 | 2000×5500 | less than 200 mm | 7500×2350×4800 | 9600 |
| GTS-2265 | 200-350 | 30 | 2200×6500 | less than 200 mm | 8500×2750×5000 | 12800 |

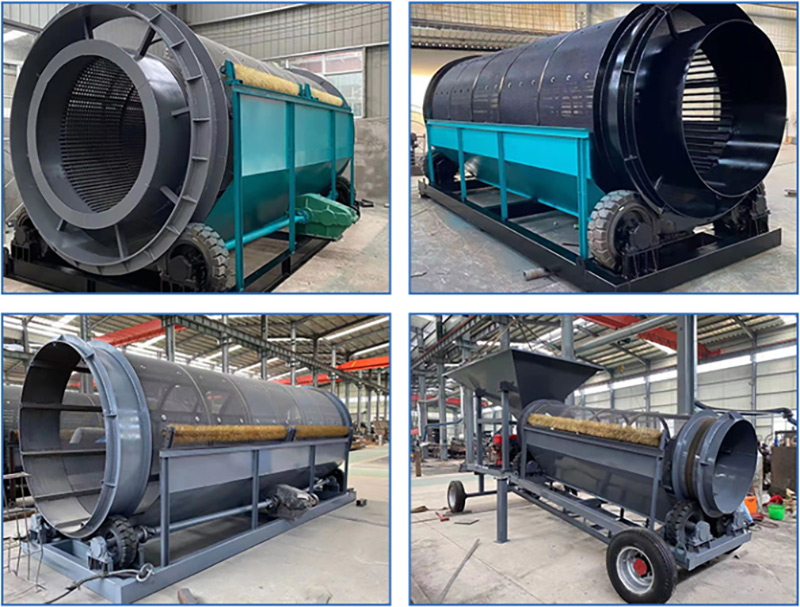

Product detail pictures:
