Fixed Competitive Price Asphalt Mobile Cone Crusher Plant - Quarry aggregates mobile stone rock diesel engine jaw crusher and screen machine – Ascend Detail:
Mobile crushing plant is used to crush many different stones, it can be used to break Pebble, gold ore rock, copper, lead and zinc (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. Can be used in Building aggregate, highway, asphalt concrete and cement aggregate production.
The mobile stone crusher crasher machine can be powered by electric motor or buy diesel engine generator according to the customer site. The advantage of diesel engine is it can make sure the crushing plant can work in any areas without consider the electricity availability.
Mobile crusher machine specification
| SC Jaw crusher | SC600 | SC750 | SC900 | SC1060 | SC1200 | SC1300PEX |
| Transport dimension | ||||||
| Length (mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
| Width (mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
| Height (mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
| Weight (Kg) | 15240 | 22000 | 32270 | 57880 | 98000 | 25220 |
| Axle load(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
| Traction pin load(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
| Jaw crusher | ||||||
| Model | PE400X600 | PE500X750 | PE600X900 | PE750X1060 | PE900X1200 | PEX300X1300 |
| Inlet size (mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
| Adjustment range of discharge port (mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
| Capacity (m³/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-65 |
| Vibrating feeder | ||||||
| Hopper volume(m³) | 3 | 4 | 7 | 10 | 10 | 3 |
| Width of Hopper(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
| Model | GZT0724 | GZT0724 | GZT0932Y | ZSW490X110 | ZSW600X130 | GZT0724 |
| Belt conveyor | ||||||
| Model | B650X6 | B800X7 | B1000X8 |
Advantages of mobile stone crusher pant.
1. Be movable and drive by diesel engine if the working site is limited
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
3. Large crushing ratio, uniform products particle size
4. Pad-style nesting population adjustment devices, and ease of adjustment range
5. Simple and reliable structure,low operation costs
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
7. Low noise and less dust

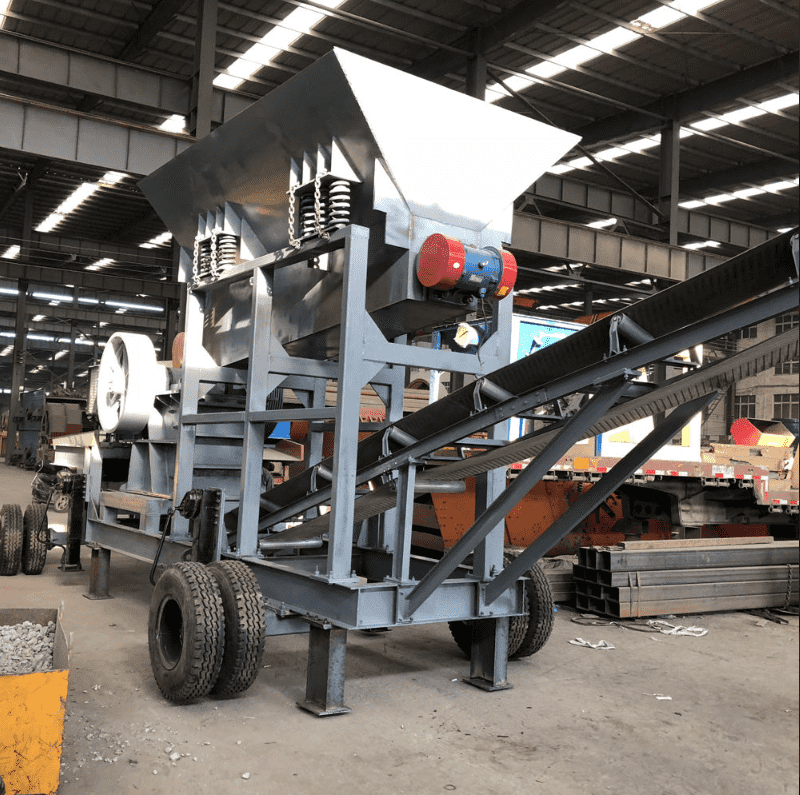

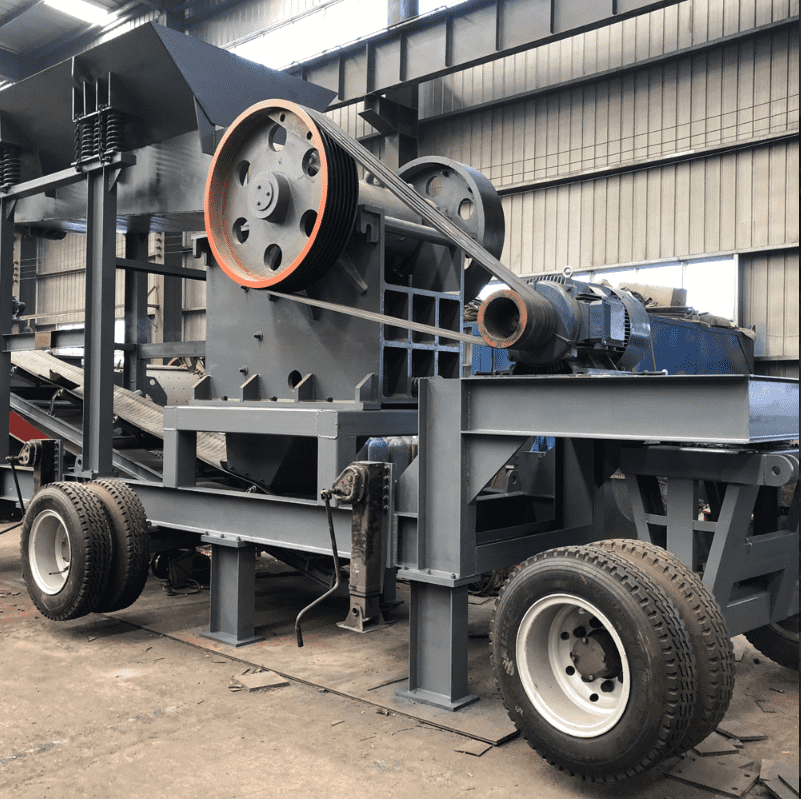

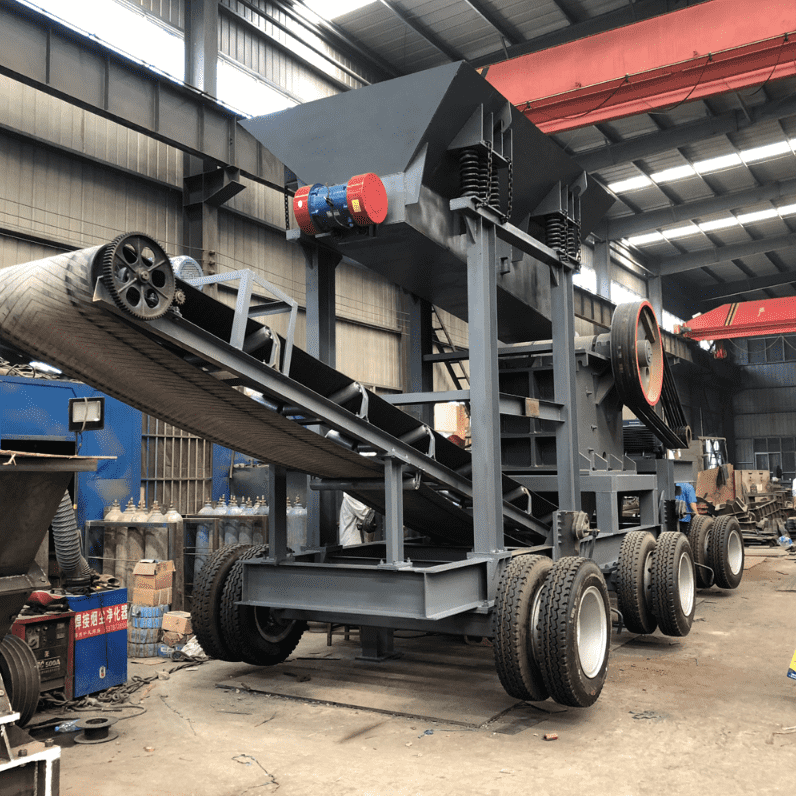

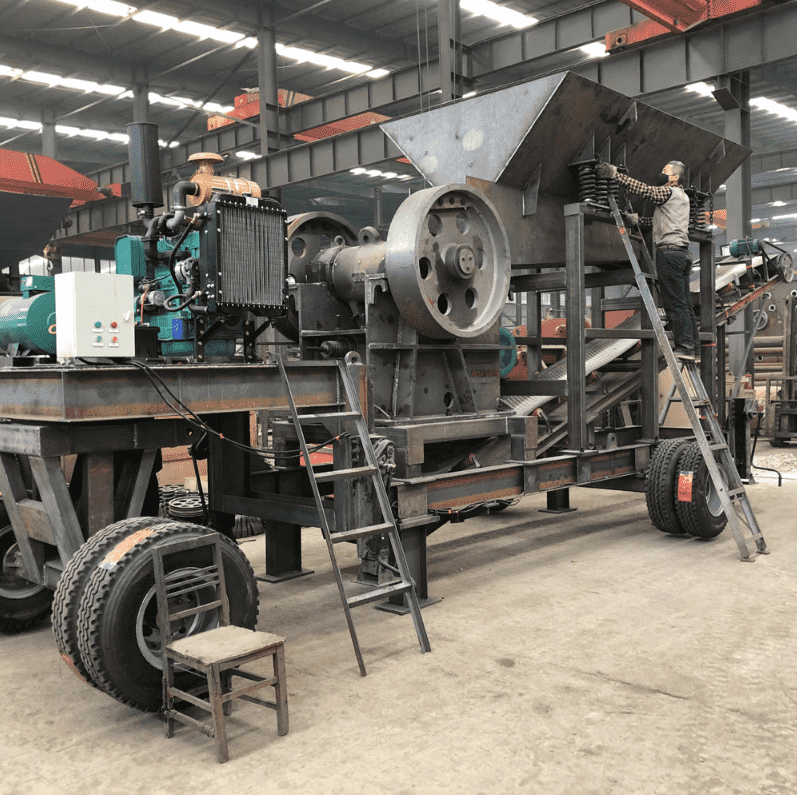

Product detail pictures:
