Factory Outlets Jaw Stone Crusher - Granite Stone Spring Cone Crusher Machine – Ascend
Factory Outlets Jaw Stone Crusher - Granite Stone Spring Cone Crusher Machine – Ascend Detail:
The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing. According to stave work need of Cone crusher,cone crusher is maily usely in the compressive strength not surpassing 300Mpa each kind of ore and rock to medium crush and in broken bits .this is a typical equipment of our country for crushing hard ore to medium crush and broken bits.it is widely applied.it has the charaterisrics of high reduction ratio, high output,,few powder lost, the product granularity even, strong compatibility of hard grain.

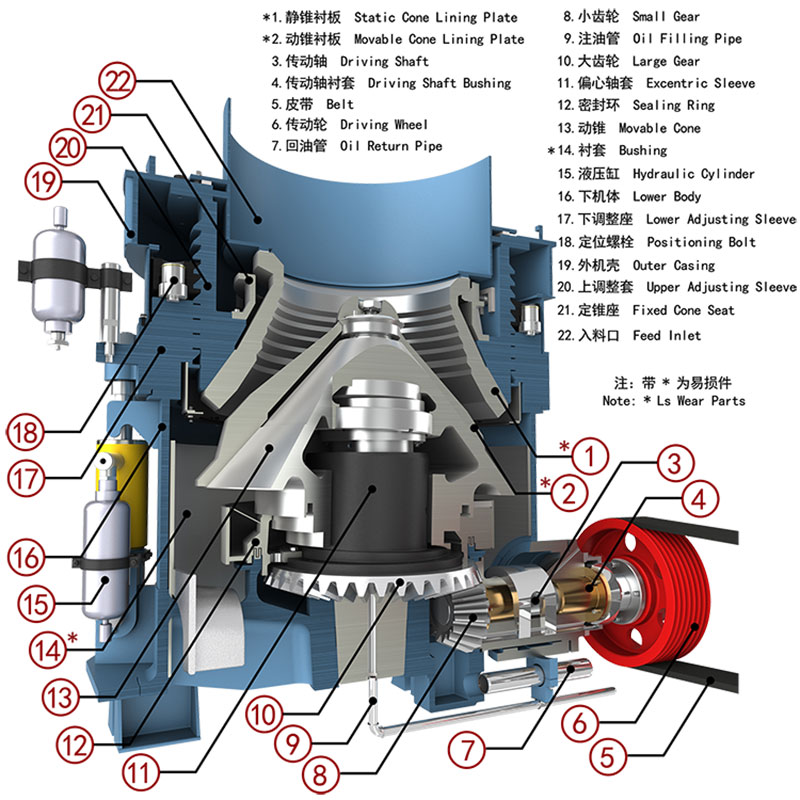

Working Principle
The motor drives the eccentric sleeve to rotate through transmission shaft and gear. And the moving cone liner rotates under the eccentric bushing. The section of the moving cone liner close to the static cone liner becomes the crushing cavity, and the material is crushed between the moving and fixed cone liner. When the moving cone leaves the section, the material that has been broken to the required particle size falls under its own gravity and is discharged from the bottom of the cone.
Specifications
|
Type |
Diameter of |
Feeding size |
Adjustment range of output size |
Capacity |
Rotation speed |
Power |
Overall size |
Weight |
| PYB600 | 600 | 65 | 12-25 | 15-25 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYZ600 | 600 | 45 | 5-18 | 8-23 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYD600 | 600 | 36 | 3-13 | 5-20 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 333 | 55 | 2692*1640*2350 | 11.3 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 300 | 110 | 2790*1878*2844 | 24.7 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 300 | 110 | 2790*1878*2844 | 25 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 300 | 110 | 2790*1878*2844 | 25.3 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 245 | 160 | 3910*2894*3809 | 50.2 |
| PYB2200 | 2200 | 300 | 30-60 | 59-1000 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 220 | 260-280 | 4622*3302*4470 | 81.4 |
Product Advantage
Same quality and specification, we offer lower price！
Same price, we can offer better quality and spare parts!
1. All the main parts adopts best brands. The steel plate is from Bao Steel, China No.1 steel company. The bearing is from China famous brand ZWZ and Timken brand from Sweden. The main wearing parts cone liner and bowl liner adopt genuine Mn13Cr2 or Mn18Cr2 depending on customer requirement. The motor is China famous LUAN brand, or we can offer Siemens motor if customer requires.
2. Good product particle shape and the wear-part is very little, and the operating cost is very low.
3. High capacity and better quality
4. High output, low use-cost, compacted structure, easy operation, less maintenance and high utilization rate.
5. labyrinth sealing ensures the hydraulic oil can not be contaminated and the lubrication can be smooth.

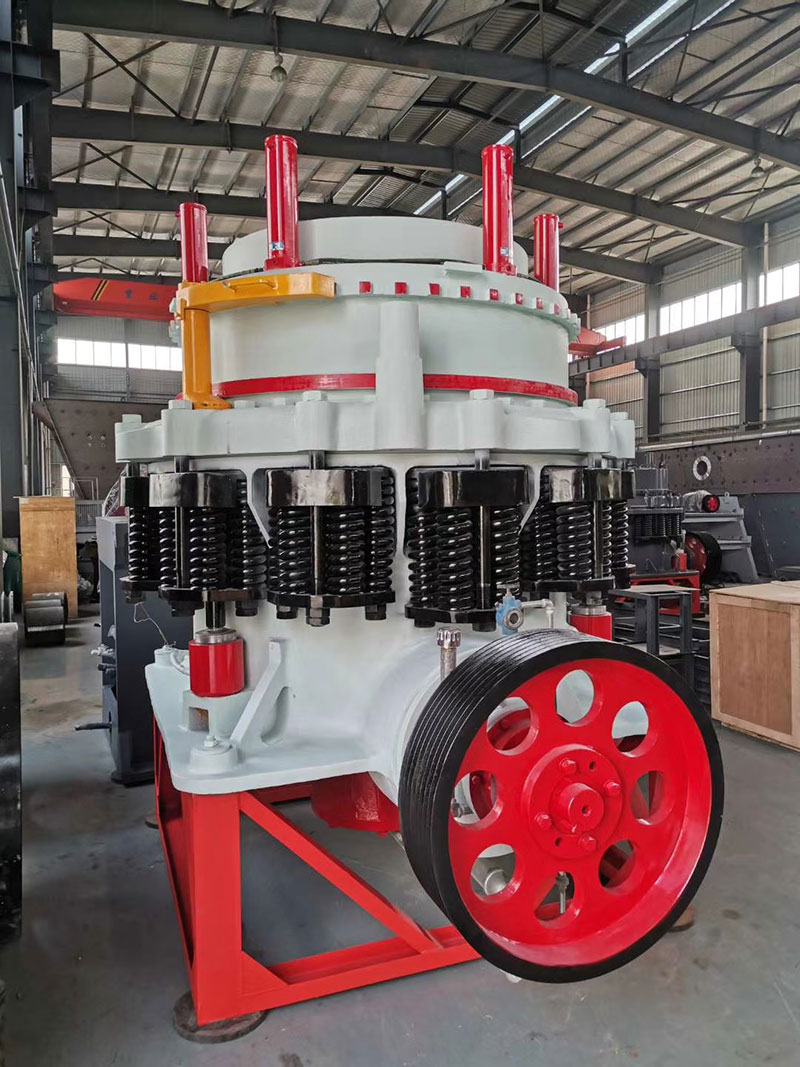

Product detail pictures:
