Ascend small lab disc grinding mill grinding mineral ore sample micronizer machine

Short Description:

Lab disc grinding mill is used in laboratories to make sample, it can grind the sample material of any kind of hardness to analyzable fineness continuously or intermittently for component analysis.The input size can be less than 10 mm, and the final output size is between 80-200 mesh according to your request.


Product Detail

Product Tags

Product Advantages

(1)Rapid grinding by friction force.
(2)Full-sealed design and no dust pollution which meets environmental protection requirements
(3)Low working noisy and easy for sample collecting.
(4)It can work normally on the flat ground without fixing any base

Product video

Specification

Model

FT-150

FT-175

FT-200

FT-250

FT-300

Disc dia.(mm)

150

175

200

250

300

Feed size(mm)

≤4

≤6

≤8

≤8

≤10

Discharge size(mesh)

80-200

80-200

80-200

80-200

80-200

Capacity(kg/h)

6-20

10-30

30-60

60-80

80-100

Power(kw)

1.5

1.5

2.2

3

3

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

Main shaft speed(r/min)

800

800

800

800

800

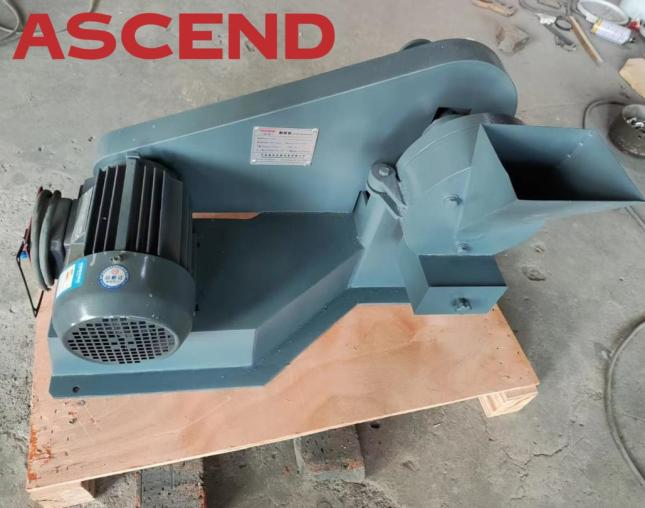

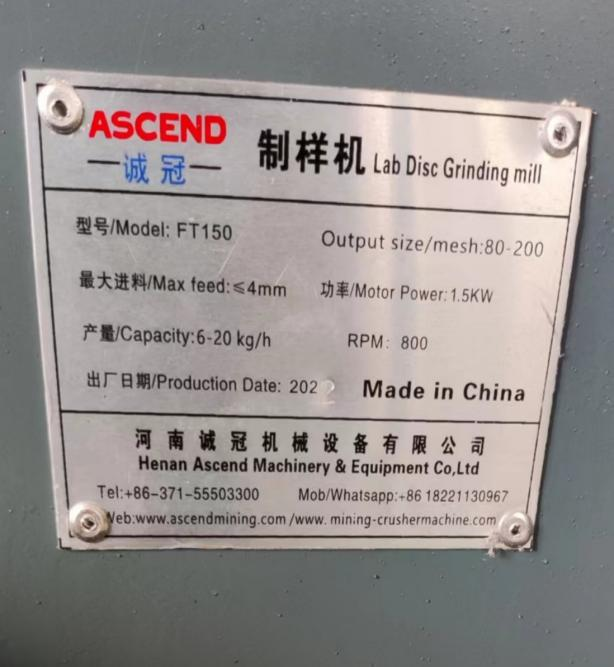

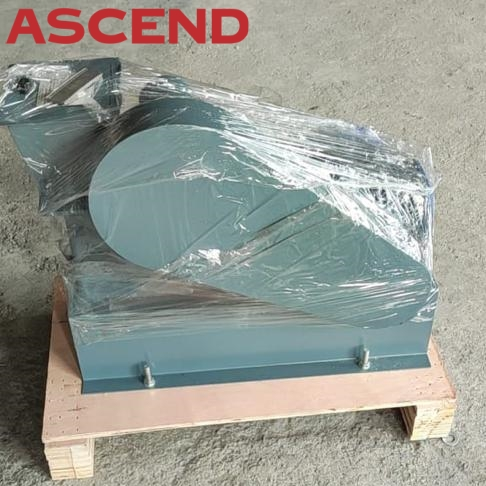

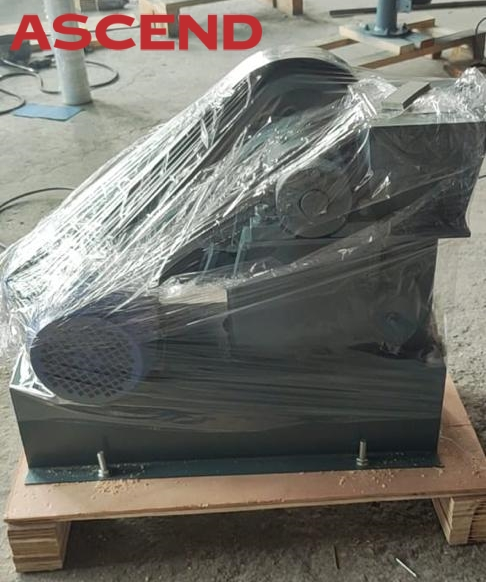

Packing and Delivery

aa29
aa28
aa30
aa31
