ASCEND double roller crusher grinding limestone marble powder with high efficiency

Short Description:

Ascend lab double roller crusher widely used in grinding mining materials, like limestone, granite, marble, gold ore and so on. It can crush and grind small amounts of materials for experimental analysis or testing. Our lab double roller crusher has many advantages of high efficiency, easy to operation and low noise.


Product Detail

Product Tags

Production video

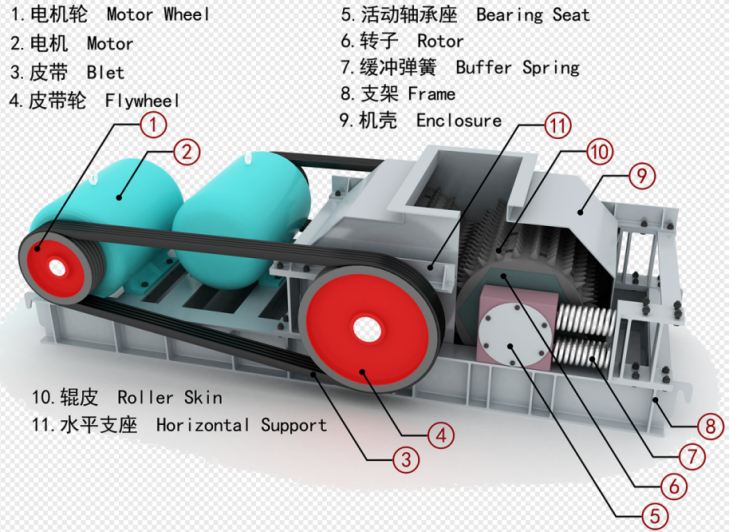

Working principle

aa18

There are two cylindrical rollers horizontally installing on mutually parallel racks, where one of the roller bearing is movable and the other roller bearing is fixed. Driven by electric motor, the two rollers do opposite rotation, which produces downward acting force to crush materials between two crushing rollers; broken materials that are in line with the required size are pushed out by roller and discharged from the discharging port.

Specification

Model

Φ200x75

Φ200x125

Φ200x150

Feeding port/mm

75x13

125x13

150x13

Max.Feeding size/mm

≤13

≤13

≤13

Discharge size/mm

0.1-3

0.1-3

0.1-3

Spindle speed/(r/min)

380

380

380

Capacity/(kg/h)

300

450

600

Motor/kw

1.5

3

3

Net weight/kg

165

235

240

Gross weight/kg

190

260

265

Dimensions/mm

1170x580x700

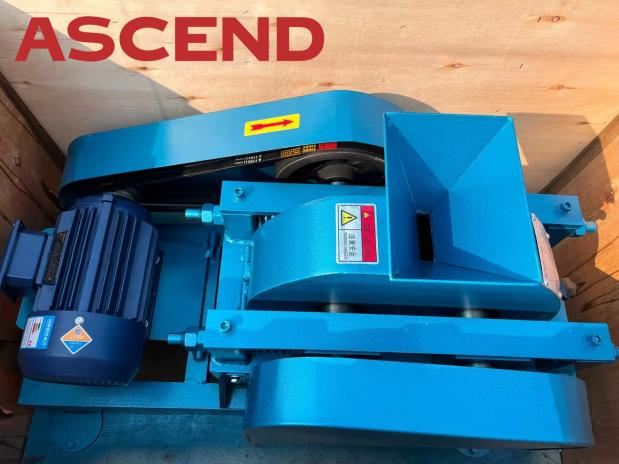

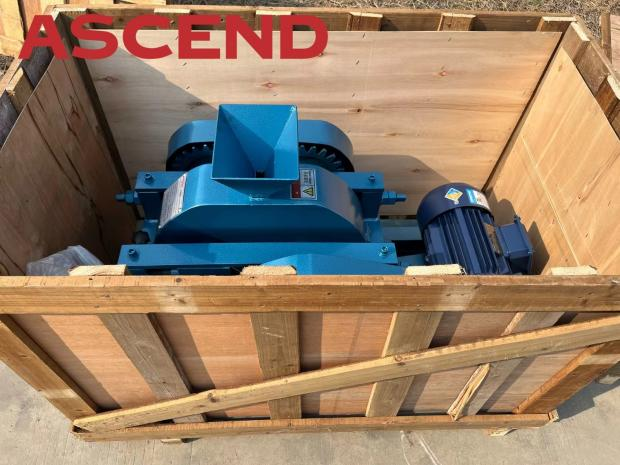

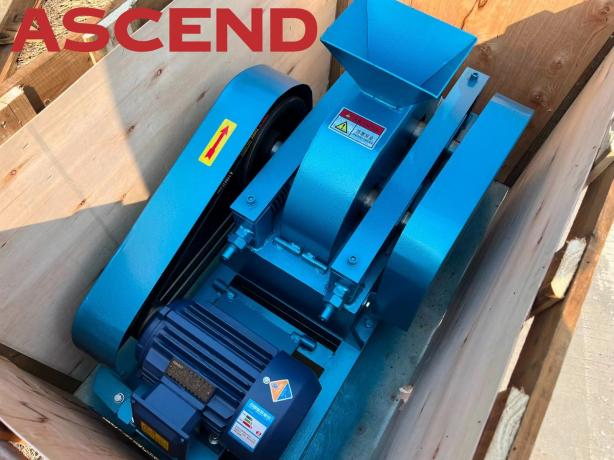

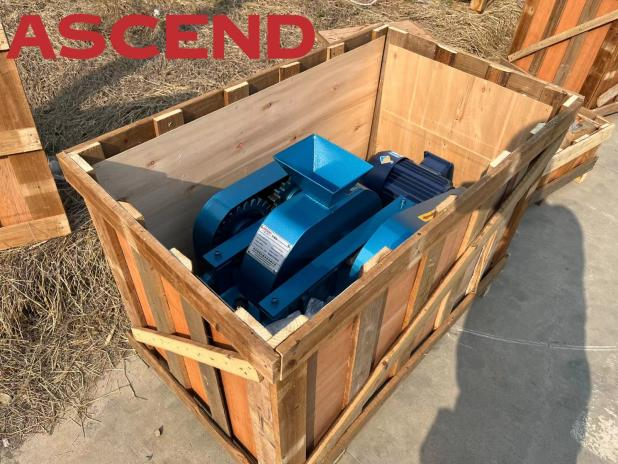

Packing and Delivery

aa20
aa19
aa21
aa22
