Ascend 2PG400x250 2PG600x410 sand making double roller crusher 10-20 TPH for limestone marble medium hardness stone

Short Description:

Doubel roller crusher with its simple structure, the tooth shape, size and arrangement of ruller surface can be adjustable according to the property of different materials. It can be applied in industrial sectors such as ore dressing,chemical industry, cement ,refractory, abrasive and building materials to break to pieces ores and rocks of various high and medium rigidities, and particularly applied in the building material industry to produce pisolitr high and pea gravel, with better effect than ordinary crusher.


Product Detail

Product Tags

Production video

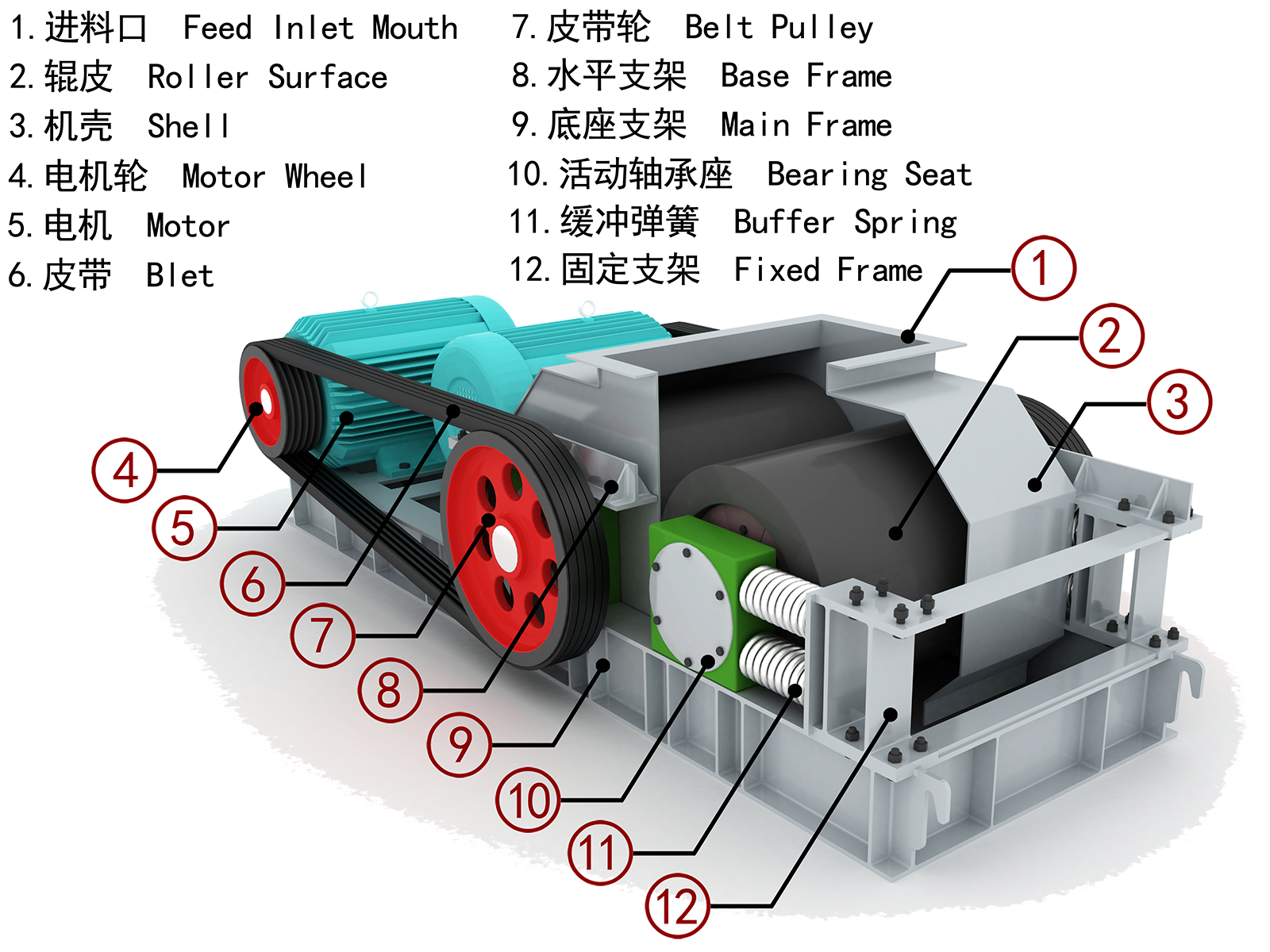

Working principle

Working principle

There are two cylindrical rollers horizontally installing on mutually parallel racks, where one of the roller bearing is movable and the other roller bearing is fixed. Driven by electric motor, the two rollers do opposite rotation, which produces downward acting force to crush materials between two crushing rollers; broken materials that are in line with the required size are pushed out by roller and discharged from the discharging port.

Specification

Model

Feeding size(mm)

Discharging size(mm)

Capacity(t/h)

Power(kw)

Weight(t)

2PG-400X250

≤25

1-8

5-10

11（5.5x2）

1.5

2PG-610X400

≤40

1-20

13-35

30（15x2）

4.5

2PG-750X500

≤40

2-20

15-40

37（18.5x2）

12.3

2PG-900X500

≤40

3-40

20-50

44（22x2）

14.0

Spare parts

Spare parts1

Customer site

Performance advantage

1. Roller crusher can achieve the effect of more crushing and less grinding by reducing the particle size and improving the crushing characteristics of the material to be crushed.

2. The toothed roller of the roller crusher is made of high-yield wear-resistant material, which has a strong impact on-resistance and high wear resistance.

3.It has the advantages of small loss and low failure rate when crushing materials, reducing the maintenance and maintenance costs in the later stage with low operation cost and long service life.
